Servo Shim Positioner S01474

Maximizes tooling flexibility by allowing quick repositioning of nets for in-process adaption to build trends in metal.

  • Lightweight aluminum construction for end effectors
  • Match ground lead screw and nut holds position even without power

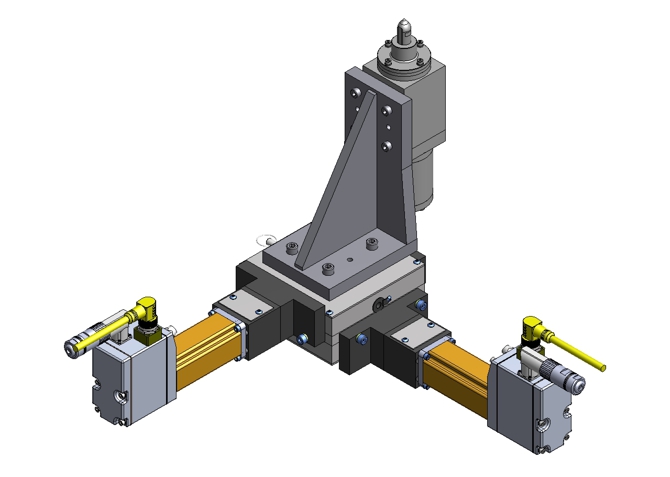

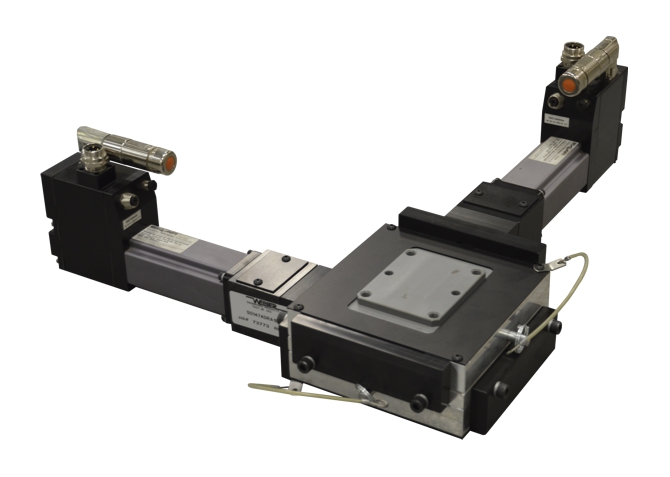

  • Available with single axis or double axis (shown) configurations
  • Slide travel is 25mm per axis, 1" per second travel speed
  • 150 lbf load capacity
  • Can be mounted in any orientation
  • Lube-free PTFE ways
  • 24V DC servo actuator with absolute encoder
  • Made to order only
